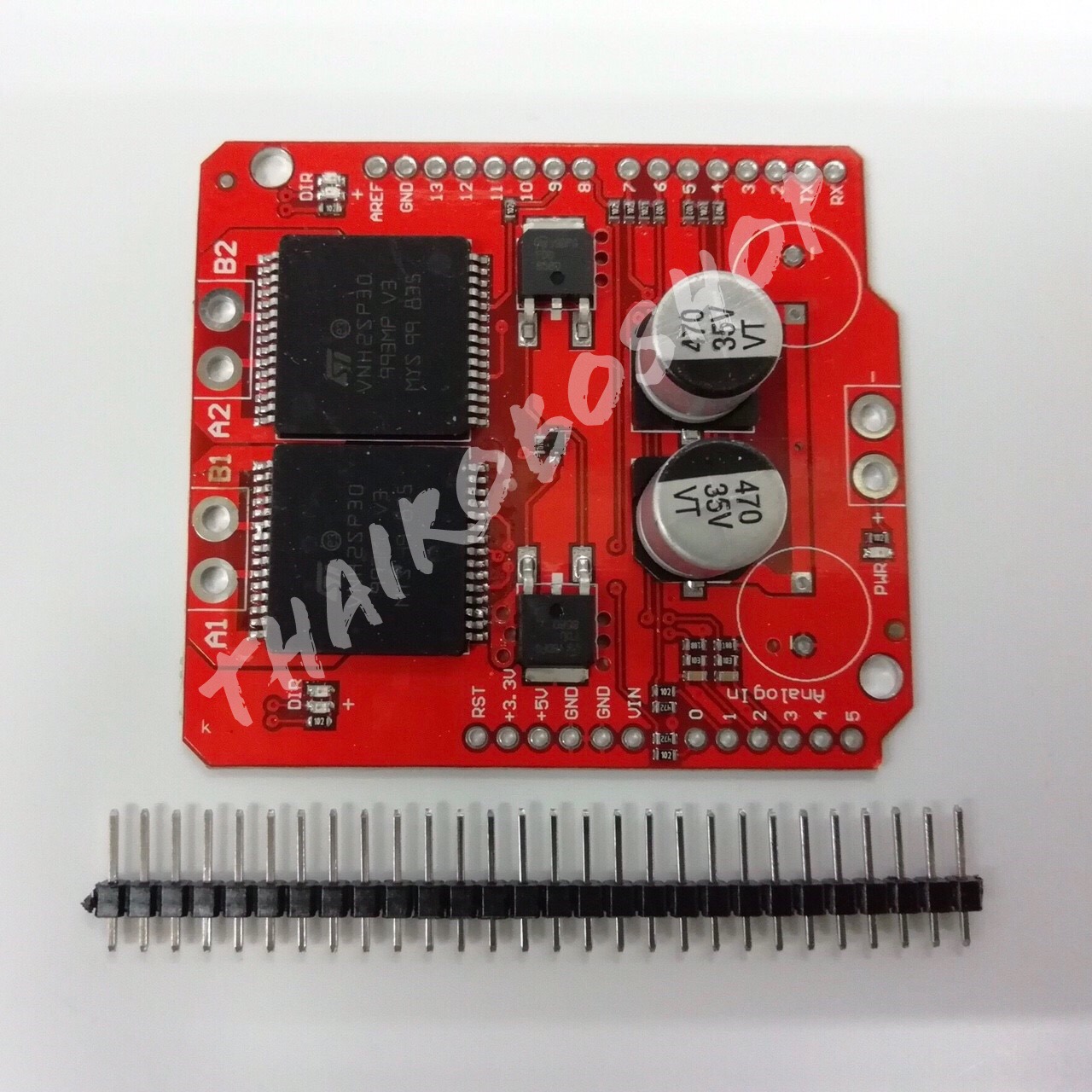

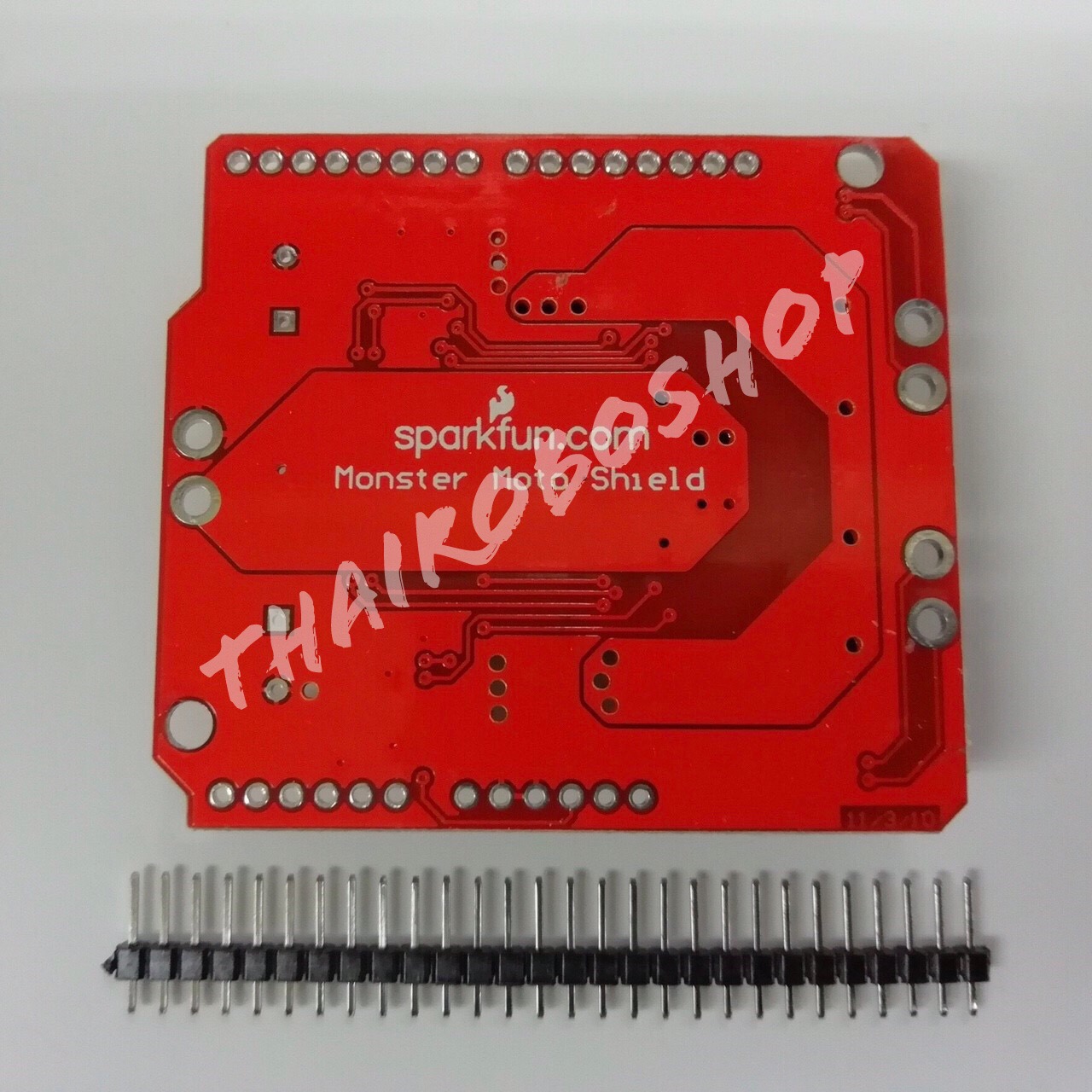

DC Motor Driver Shield VNH2SP30 2 Channal

Voltage max : 16 V
Maximum current rating : 30 A
Practical Continuous Current : 14 A
Current sensing available to Arduino analog pin
MOSFET on-resistance : 19 mOhm (per leg)
Maximum PWM frequency : 20 kHz
Thermal Shutdown
Undervoltage and Overvoltage shutdown

• Schematic
• Eagle Files
• Datasheet (VNH2SP30)
• Example Code
• GitHub (Design Files & Example Code)
