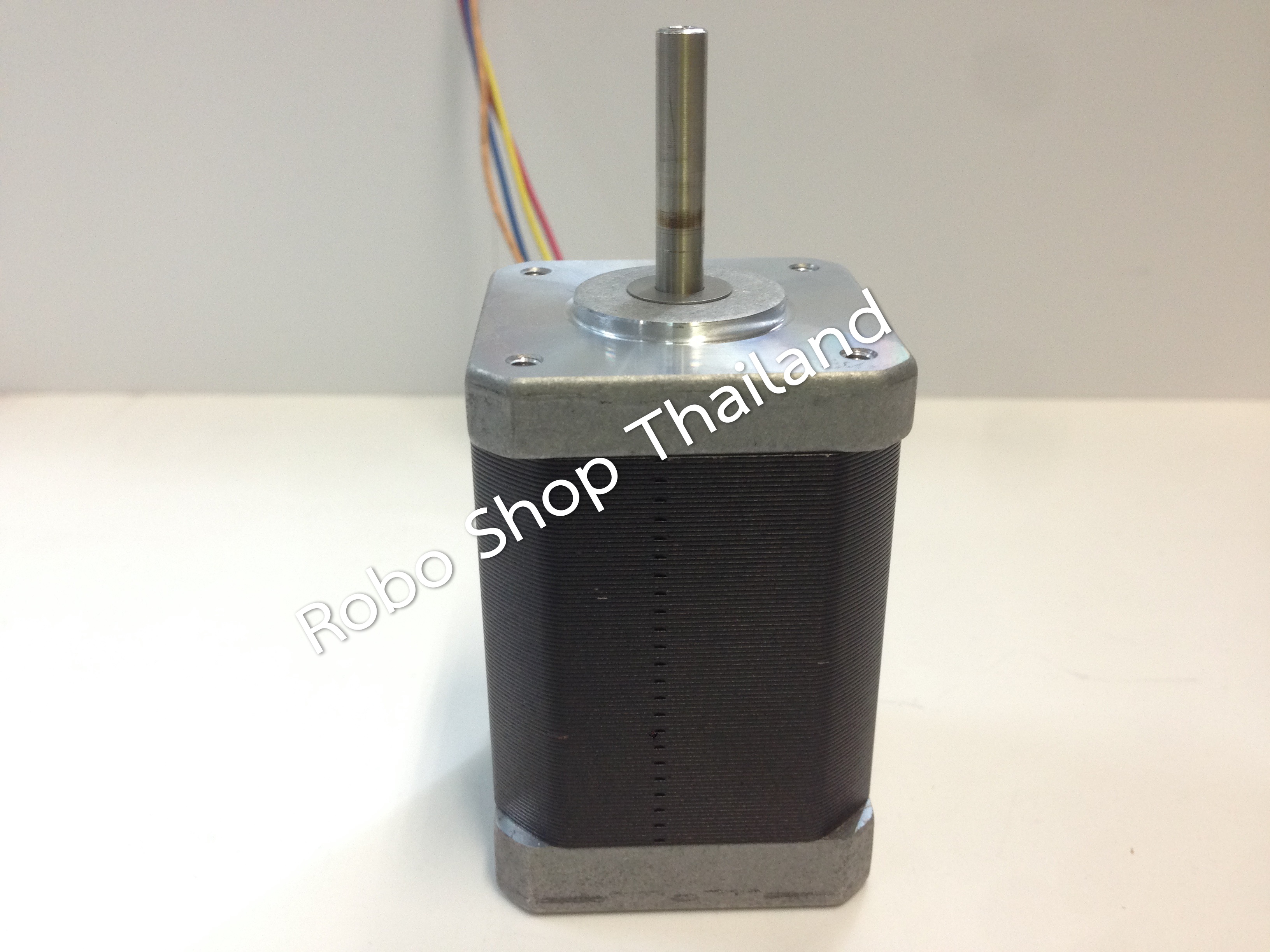

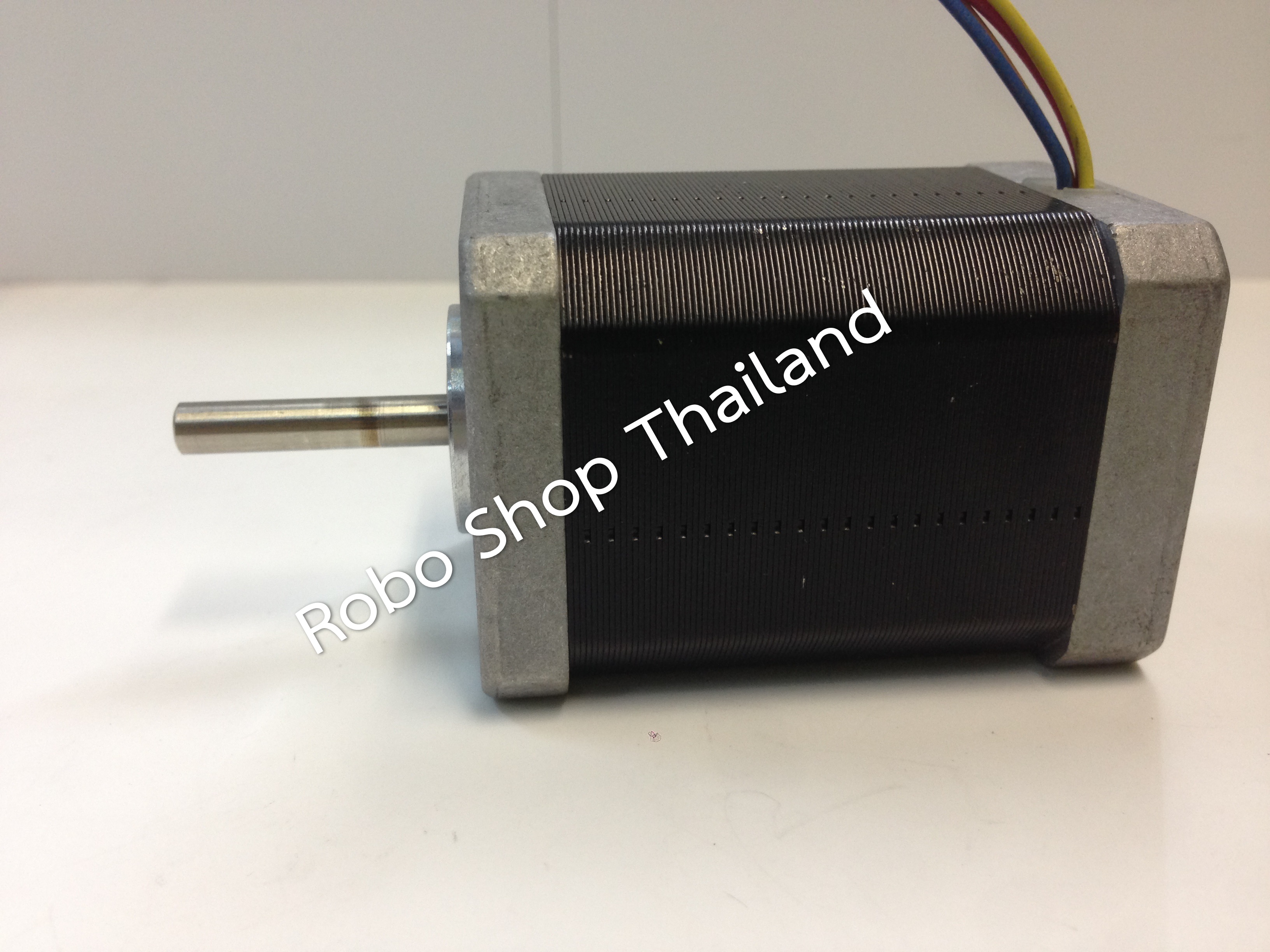

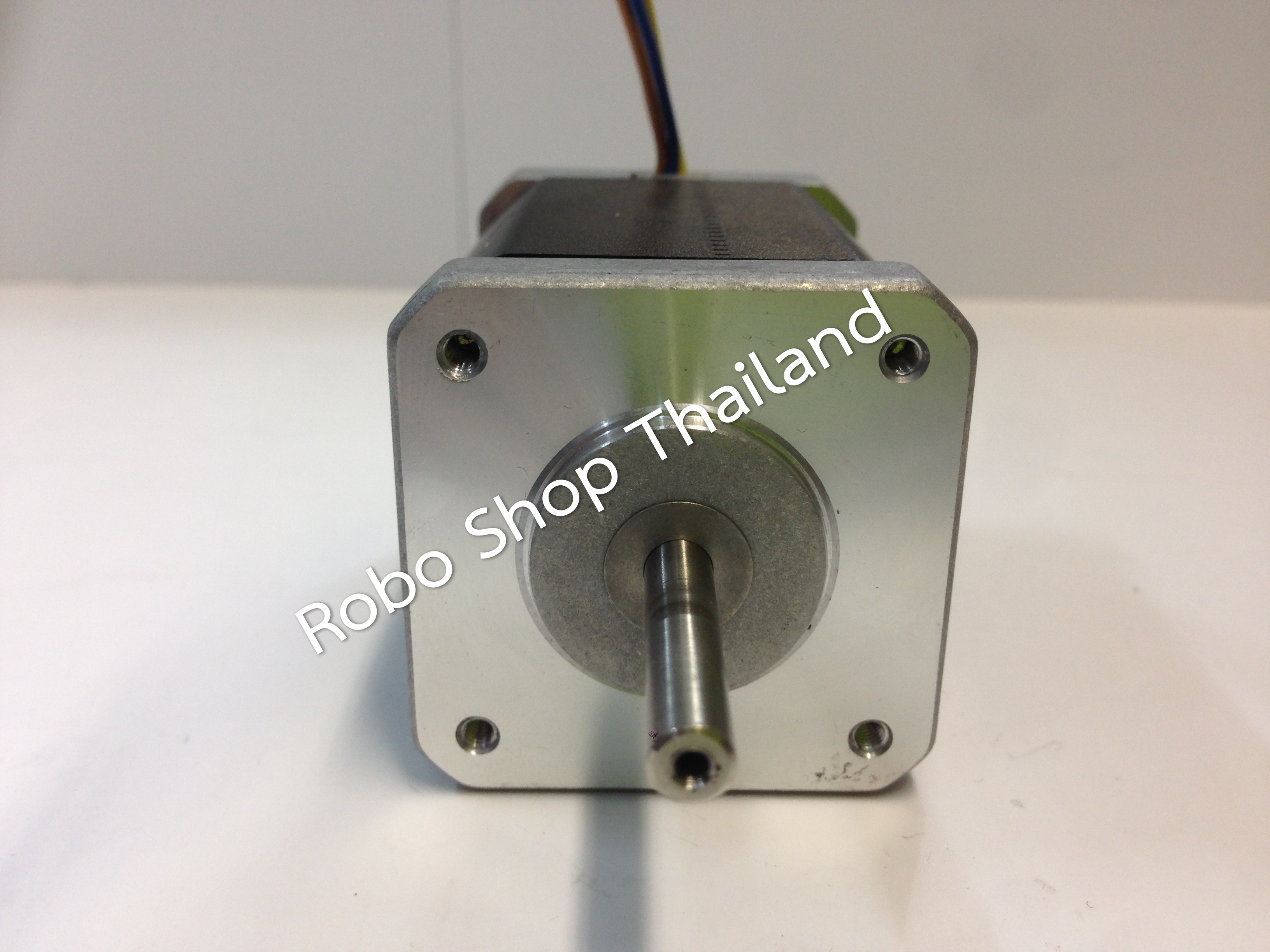

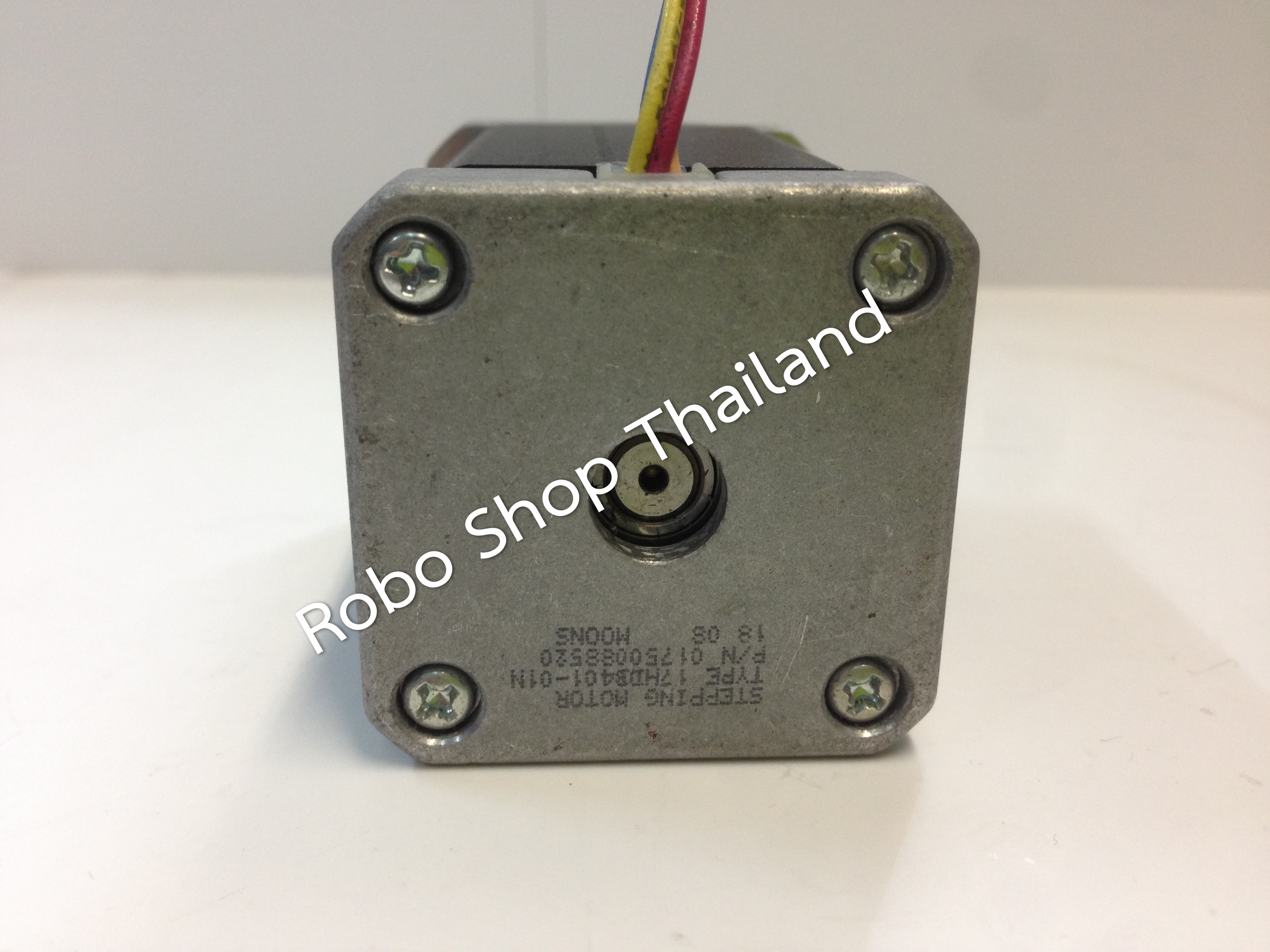

Step Motor NEMA17 (17HDB1401)

NEMA motor step 17 extra long, 1.8 deg / step. Mark Moons 17HDB401

EYE THE PRICE YOU SEE ON SCREEN IS FOR A MOTOR.

Current 1.5 amperes per phase.

Resistance: 2.3 Ohm.

Inductance: 4.6 mH / phase.

Resolution: 1.8 degrees per step, 200 / rev.

Shaft: 5 mm.

Torque: 103.5 Oz / In, 7.4422 kgf / cm2

Mark Moons, model 17HDB401

Voltage: from 7-48 volts DC (Ideal Work 12v to 36v).

Measurements: 42mm wide, 63mm long.

Connection: BIPOLAR

Cables: 4 cables. .A- A +, B +, B-

Exposure: Class B

Weight: 600 grams.
